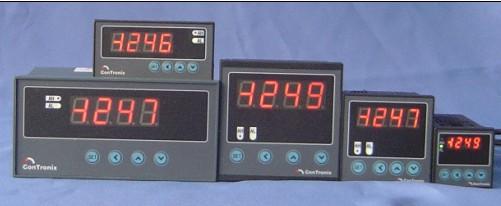

XSCH Single Channel Input Digital Intelligent Instrument

Specifications

1.Have zero, full-scale correction
2.easy to be adjusted
3.The communication interface can be self-diagnosis, self-recovery

1. Instruction

This Intelligent instrument can complete the physical quantum measurement, transformation, indication, transmission and controlling by working with all kinds of analogue signal output of sensor and transmitter. This product uses the fixed classification signal input, maximize accuracy, resolution, and anti-jamming capability based on the characteristics of the various types of signals, CS5523 AD analog-to-digital converter to ensure the measurement accuracy and speed.

2. Basic configuration

1. Strong anti-interference ability to adapt to a variety of complex scene
2. High efficiency wide voltage switching power supply design
3. Input, output, external supply and communications are isolated from each other.
4. Have zero, full-scale correction, the 8 segment polyline correction, easy to be adjusted at the scene
5. . Communication is transparent, efficient and reliable
6. 10 kinds of alarm mode can be set to meet the requirements of a variety of controlling.
7. With Print (manual, timer, alarm), RS232, RS485, large screen display interface

3. Specification

 Power: 220VAC power instrument: 220V±10%, power consumption: less than 7VA;

 24VDC power instrument: 24V±10%, power consumption: less than 5VA;

 12VDC power instrument: 9V~20V, power consumption: less than 5VA;

 Note: Customized available

   Working environment: 0~50°C, humidity less than 90%RH, larger temperature range available

  Display range: -1999~9999, decimal point position can be set freely.

 Display color: measured value: green; set value: red; beams of light: red; or customized available.

 Display resolution: 1/10000;

 Measurement control cycle: 0.2s

Specifications

 1     2  3  4   5    6  7

XSCH / o — o R T A o B o o

Ø 1   Dimensions (W×H×L)

A  160×80×125 or 80×160×125

B   96×96×112

C  96×48×82 or 48×96×82

D  72×72×112

Ø 2 aceplate Types  H  ----Horizontal Type
                                      S --------Vertical Type
                                      F --------Square Type

Ø 3----- Display Types

R  Measured Value(Red)

G  Measured Value(Green)

Ø 4---------  The Number of Alarm Outputs

T---------- 2 Alarm Outputs

Ø 5 --------Re-Transmitted Output

A0 ------No Output

A1 -----------DC Current Output(4 mA ~20 mA),(0 mA ~10 mA)or(0 mA ~20 mA)

A2  -------DC Voltage Output(0 V ~5 V), (1 V ~5 V)

Ø 6------  Power Supply Output

B0---------  No

B1  -------24V DC

B2  -------12V DC

Ø 7---------Input Signal

E----------Thermocouple or Radiation Thermometer

R----------RTD or Resistance

I-------- DC Current

V--------DC Voltage
